DJ mechanical diaphragm metering pump (dosing pump) is widely used in petroleum, chemical industry, spinning, food industry, papermaking, atomic energy, power plants, plastics, pharmacy, water works, environmental protection or other industries. It could pump liquid to pressurized container or atmospheric container with accurate measuring. Medium can be corrosive and high viscosity, and should be without solid and with viscosity range of 0.3~800 mm2/s

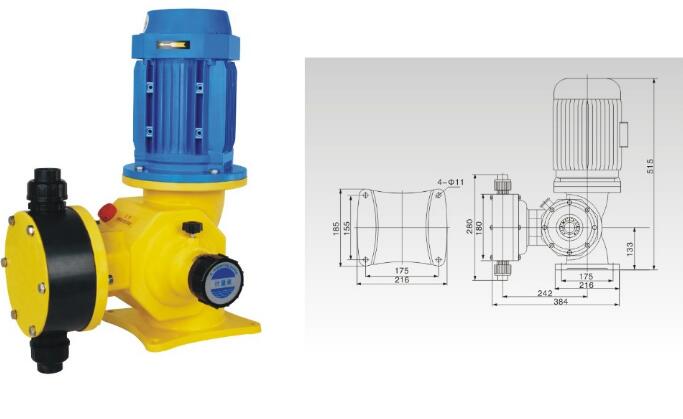

DJ-D Series

Inlet and outlet diameter：DN25-DN40

Flow rate range：380L/h-1800L/h

Outlet pressure：0.3MPa-1MPa

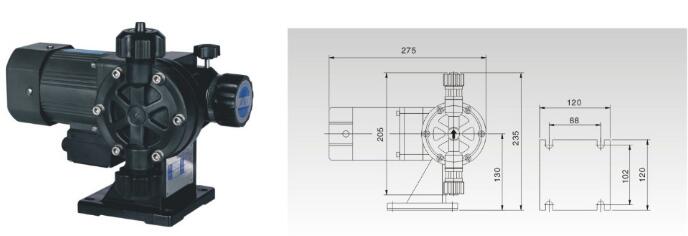

DJ-W Series

Inlet and outlet diameter：DN 6

Flow rate range：9L/h-32L/h

Outlet pressure：0.3MPa-1MPa

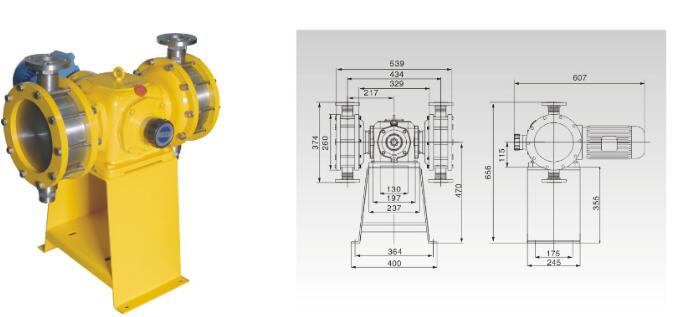

DJ-L Series

Inlet and outlet diameter：DN6-DN15

Flow rate range：6.5L/h-180L/h

Outlet pressure：0.3MPa-1MPa

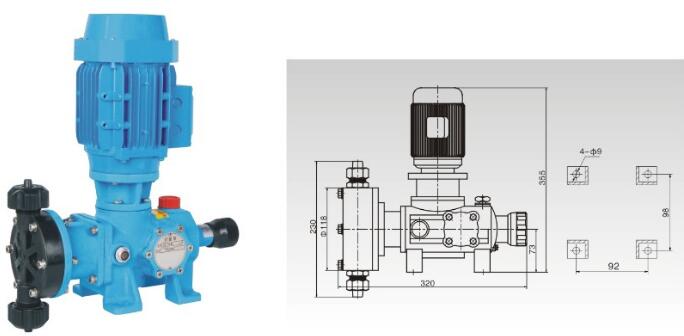

DJ-Z Series

Inlet and outlet diameter：DN15-DN25

Flow rate range：25L/h-500L/h

Outlet pressure：0.5MPa-1.2MPa

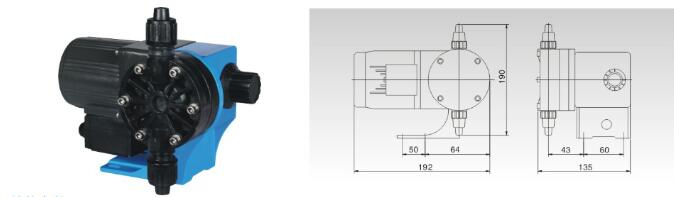

KD Series

Inlet and outlet diameter：DN15

Flow rate range：20L/h-240L/h

Outlet pressure：0.5MPa-0.8MPa

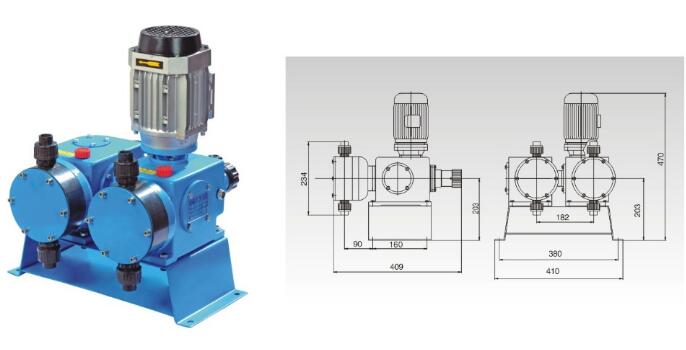

DJ-X2  Series

Inlet and outlet diameter：DN15

Flow rate range：50L/h-350L/h

Outlet pressure：0.4MPa-1.2MPa

DJ-X2  Series

Inlet and outlet diameter：DN25-DN50

Flow rate range：1300L/h-5800L/h

Outlet pressure：0.3MPa-0.5MPa
