Product Introduction:

  G  type screw pump for a single screw-type transport pumps, because of its excellent performance in recent years in the domestic application of rapid expansion. Its most important feature of the media flexibility and a smooth flow, pressure, pulse of small, self-absorption capacity, which is by any other species can not replace the pump can be realized liquid, gas, solid multiphase lose, applied to Chemical, pharmaceutical, electroplating, printing and dyeing, paper, electricity and other transportation industries lubrication or non-lubricating medium, corrosive media, containing a small amount of tiny solid particles of medium and low viscosity of the medium to high viscosity.

Range of Application:

 To handle industrial and domestic wasterwater, and muddy water containing solid particles and short fibre;To handle mediums such as oil remains in oil tankers,oil water,oil residue and etc.;

  To handle thick paste ,emulsified paste,unguent cosmetics and etc.;

   To handle adhesive starch ,cooking oil ,honey, pulpy sugar, mashed fruit,cream and other leftovers;

  To handle paste in the industries of brewage,construction ,mining ,printing ,papermaking and etc.

  2. SERIES 3G, THREE SREW PUMP

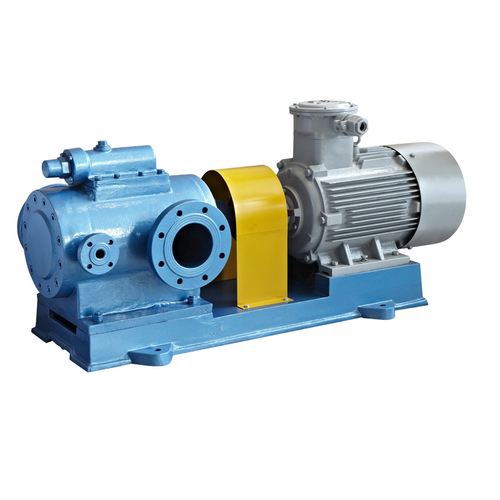

     3G three-screw pump is a kind of positive displacement rotary pump with the properly meshing in pump block. The rotary screws could push the medium closed-in to outlet continuously & equably. Pump could provide stable pressure to system and pump non-corrosive oil or lubricated liquid that similar to oil. It's with small pressure fluctuation, stable capacity, reliable running, high revolving speed, low noise, high efficiency, long service life & strong self-suction ability. The viscosity of liquid should be 2500C.S.T, and temperature should be ≤200°C(392°F). The pump also could be designed with double jacket casing, which could be heated by hot steam, thermal oil, etc to reduce the viscosity of fluids with easy solidification. The maximum temperature of fluid and steam can be 350°C(662°F).
